Vol.117

Kinds of dummy cans and suitable inks for each kind

Screen Printing inks for dummy samples

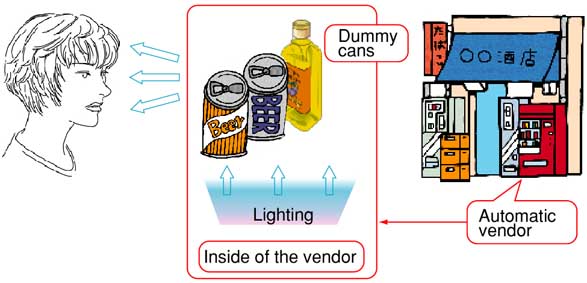

Many automatic vending machines are shown in the streets. And the machines have to have dummy samples to show how their commodities look like. They must be looked attractive to arouse customerÅfs interests. Sometime they are backlit to be noticeable in dark. They will be exposed under sunlight for a long period and the print should have excellent light fastness.
Now we are explaining the special features required for the ink to make them.

1. What are required for the dummy samples?

a) Must look like the real commodity.
b) Must look like in day and night.
c) Must be bright to arouse customer’s buying inclination.

2. What are required for the inks for dummy samples?

a) Excellent light fastness.
b) Excellent post-forming suitability
c) Excellent heat resistance

3. Shape of dummy samples

Shape Short cans Tall cans with shoulder Bottles
Method of making Print labels on flat sheets and wrap around blank bodies. Print labels at first then die-form the top parts and wrap around blank bodies. Make front halves of the samples by vacuum forming.
Forming Die cutting Good Good Good
Die forming Good
Vacuum forming Good
Applied commodity Coffee cans 350ml tall cans Can be applied for almost all kinds of shape such as metal cans, PET bottles, etc.

4. Our inks for dummy samples

Substrate PET Treated PET, PC, PC/PETG laminates
Name of the suitable Ink EG VG, VS FOM
Ink Type Solvent type. One-pot Solvent type. One-pot Solvent type. One-pot
Special Features of the ink Good adhesion to treated & untreated PET. Good adhesion to treated PET & PC. Excellent heat resistance and elongation of the ink film, suitable to vacuum forming.
Forming Die cutting Good Good Good
Die forming Good Good Good
Vacuum forming Good
