What are RoHS, WEEE, and ELV?

RoHS is an abbreviation for “Restriction of the use of certain Hazardous Substances in electrical and electronic equipment”.
Our inks are all RoHS compliant products.
RoHS Directive was established for the purpose of eliminating the harmful substances in electrical and electronic equipment sold in the EU in order to facilitate recycling of electrical and electronic equipment and prevent adverse effect on human being and the environment when they are eventually landfilled or incinerated.
RoHS 2 Directive specifically states that the use of cadmium, lead, mercury, hexavalent chromium, PBB (polybrominated biphenyl), PBDE (polybrominated diphenyl ether), and four phthalate esters (DEHP, BBP, DBP, and DIBP) are restricted or prohibited in electrical and electronic equipment.
The maximum permissible concentration is set for each of these 10 substances, and products containing an amount exceeding it cannot be manufactured or sold in the EU.
These “Directives” are EU directives, and since products distributed within the EU are subject to regulation, many Japanese companies manufacturing export products are also affected.
Furthermore, even if your company does not export in-house products directly to the EU, you will be held responsible retroactively if the products in which in-house products are incorporated are exported.

What are the meanings of X and Q used in the ink names such as IPX, INQ, FMX, etc.?

X and Q are used to designate isophorone-free inks.

IR Transmittable, Luminescent function, others

What is diffusivity?

We refer to the diffusion of light (Haze: cloudiness). By diffusing light, a frosted glass-like effect can be achieved.

What is Phosphorescent ink?

Phosphorescent ink contains pigments with luminescent properties that absorb and accumulate light rays from the sun, electric lights, etc., and gradually emit them, so the absorption-accumulation-emission process can be repeated many times. It can also be applied to safety and energy saving measures.

Related Links
Introduction of Luminova Phosphorescent Ink
Product Information: Phosphorescence Ink
Luminova Phosphorescent ink

What is dead front (concealed) printing applying the IR transparency function?

As mentioned above, IR transmittable inks allow control of transmittable colors, and variation in hue can be achieved by overprint with metallic inks. Therefore, various decorations are possible with “dead front (concealed) printing,” printing that cannot be seen unless illuminated by light.

Note1) Transmittance varies slightly depending on the transmitted color.
Note2) Infrared transmittance decreases by 10-20% when over printed with metallic inks. Related Links Introduction of IR Transmittable Ink and Dead front Printing

Related Links
Introduction of IR transmittable ink (IR Transmitting Ink) and concealed printing

How do you use IR transmittable ink (IR Transmitting Ink) ?

After printing IR transmittable ink (IR Transmitting Ink) onto transparent PC or PET substrate sheet, the ink has the special function of blocking the shorter wave-length visible rays and ultra violet rays and allows the longer wave-length infrared rays to penetrate. One example of an application that this ink is used for is the signal receiving filter of remote control devices.

What are the meanings of X and Q used in the ink names such as IPX, INQ, FMX, etc.?

X and Q are used to designate isophorone-free inks.

Jet Black, High Opacity, Non-conductive, Others

Is there any information related to high transparency inks?

The MIX-HF ink series offers “High transparency” and “excellent leveling property” more than ever before. The haze value in MIX-HF000 medium (*) is as low as 0.6. In addition to MIX-HF, there are other inks with high transparency such as TOC-HF. Please select the ink that best suits your application.

(*) Haze value: Haze value is the ratio of diffuse light transmission to total light transmission when irradiated with visible light. The smaller the haze value, the better the transparency.
Haze value(%)=Td/Tt x 100 (Td:Diffusive transmittance, Tt: Total transmittance)

Related link:
Introduction of MIX-HF (2)
Introduction of TOC-HF transmittance ink (1)

What is non-conductive black ink?

Non-Conductive Black Ink is an ink that has a high electrical resistance of the printed ink layer, and has both a function that is difficult for electricity to pass through and a high opaque black color. The high electrical resistance (low conductivity) prevents malfunctions and failures of electronic components, etc., caused by electric current flowing through the printed ink layer. Furthermore, its high opacity makes it suitable for printing on flat panels and smartphone displays that require light-shielding properties.

Related Link
Introduction of Functional Black Ink

What is high opacity black and white?

This function provides a beautiful black or white color with high opacity even in environments where backlights are used, such as outer frames of flat panels and touch panels.

Related link
Introduction of GLS-HF (3)

What is jet-black ink?

Jet-Black ink is an ink that produces a glossy black finish called “piano black” or “jet black. It achieves a luxurious lacquer-like gloss and unique brilliance, and contributes to the high added value of the products .

Related link
Introduction of functional Black ink

Mirror ink in general

Is Mirror Ink patented?

Yes it is patented. (Japanese Patent Registered Number 3151606)

The patent covers the manufacturing method of Mirror Ink, making prints with Mirror ink and making prints with similar ink.

What is the meaning of mirror effect technology?

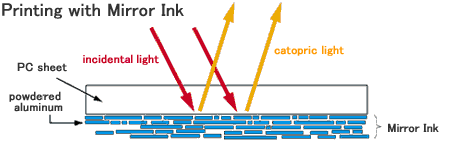

Mirror ink is applied onto PC or PET material sheet by screen printing, which results in a mirror effect similar to metal plating.

Is it possible to add color to mirror ink?

Mirror inks are available in a variety of colors. Vivid colors and high mirror effect can be achieved by combining with transparent ink. Please refer to the following to select the ink that best suits your application.

Related link
Introduction of MIX-HF (1)
Introduction of TOC-HF transmittance ink (2)

Caution for using Mirror ink

What is the recommended applicable substrate?

The applicable substrates for MIR-Ink are PC and treated PET (MIR ink does not adhere to untreated PET, eveb if it is a PET substrate).

However, adhesion varies depending on the grade of PC and treated PET. In addition, for hard coat materials and acrylic materials, it is necessary to individually select inks and check adhesion.

What is the recommended overprint ink?

Please use MIX-HF ink for MIR-ink for over printing. If other inks are used, the mirror effect will deteriorate.

However, for substrates with strong solvent resistance (treated PET), inks other than MIB and MIX-HF inks can also be used as a overprint ink.

What information do you have on how to handle inks that affect mirror effect?

Be sure to stir mirror inks before printing. Some of the components may be separated, but stirring will make them uniform. Insufficient stirring may cause streaking or unevenness.

Do not return ink to the container of unused ink after printing. Ink remaining on the stencil will cause aluminum to agglomerate with each other, and printing again may cause a decrease in mirror effect quality, as well as the occurrence of streaking and unevenness. The above problems may occur if used ink is used, so please avoid using used ink.

Regarding the supply of ink, it is more efficient to use ink by pouring ink little by little onto the stencil than to put the amount of ink required for printing on the stencil at once.

What is the information on printing conditions that affect mirror effect?

Printing pressure and doctor pressure are important in printing conditions. Mirror ink provides mirror effect and opacity by orienting aluminum pigments. Therefore, in order to orient the aluminum pigments, the printing pressure and doctor pressure should be set higher than for general solid inks.

Thicker film thickness (3μ or more) may cause delamination in the aluminum layers. In addition, mirror surface will be reduced, causing unevenness. As for opacity, thicker film thickness improves opacity, but if the aluminum pigments are well oriented, opacity can be obtained even with a thin film thickness.

Stable quality (mirror effect and opacity) of printed materials can be obtained by printing recommended conditions described in 1-2 Screen stencil, 1-3 Squeege, 2-2 Drying conditions, and 2-3 Printing conditions.

What is the information on drying conditions that affect mirror effect?

For non-solvent-resistant substrate (PC), mirror effect properties are greatly affected by drying conditions. This is especially true for PC molded products. The optimal drying conditions vary depending on the grade of PC resin used, molding conditions, etc.

Mirror effect can be obtained by initial drying at low temperature and subsequent drying at high temperature. (Initial drying at low temperatures suppresses the effects of solvent attack and improves the mirror effect because the aluminum pigments are well oriented.)

What is the information on substrate (base material) that affect mirror effect?

Drying conditions vary depending on the type of substrate.

In case of MI-51000 Mirror ink series, drying condition is 80℃, 30 min. for both PC and treated PET, but for PC, initial drying at low temperature followed by high temperature drying (80°C for 30 minutes) will give a more mirror effect.

What is the recommended preliminary test?

Be sure to conduct a preliminary test under similar printing conditions before printing on the main line. The preliminary test procedure is as follows.

1. Print mirror ink on the substrate to be printed on the main line (substitutes are not acceptable) and dry under the conditions described in the catalog.
2. Conduct test on mirror effect, opacity, and adhesion, etc.
3. If it fails, adjust the printing and drying conditions to obtain satisfactory results.

Repeat the above tests until appropriate conditions are found.

What is the recommended viscosity adjustment?

Mirror inks do not require dilution at the time of use. However, it should be stirred well before use.

What is the recommended screen stencil?

The finish of mirror ink prints varies depending on the type of screen stencil used. The items of a screen stencil suitable for printing mirror ink are stencil mesh, opening, line diameter, and emulsion thickness. Recommended conditions for printing stencil are a stencil mesh of T-300, a wide opening, a narrow line length, and a thin emulsion thickness (6 to 8 µm).

What is recommended environmental conditions?

When printing MIR-Mirror Ink series, please adjust the temperature and humidity to keep them constant as printing working conditions. Recommended conditions are temperature: 20-25℃, humidity: 50±5%Rh. If the printing working conditions become too hot or too humid, mirror ink absorbs moisture, resulting in a decrease in mirror effect and opacity, and stable printing is not possible.

What are some of the differences between mirror ink and general solvent ink that should be noted?

In order to provide mirror effect, the composition of Mirror Ink differs greatly from that of general solvent type inks.

The composition of mirror ink is mainly resin, aluminum pigment, and solvent, but the resin to solvent ratio is different compared to general solvent type inks. Therefore, there are differences in performance, such as printability, between mirror ink and general solvent type ink.

Troubleshooting Mirror ink

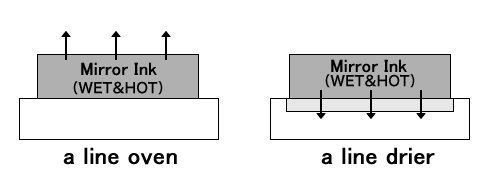

When drying the print in a line oven it sometimes appears hazy. Why does this occur?

Upon further investigation with the customer, the printing conditions that caused this hazy appearance were discovered to be as follows. Mirror Ink was printed with a cylinder press and dried in a line dryer at a high temperature, thus the resultant hazy effect. The reason being: the initial drying at a high temperature. The recommended drying condition is 30 minutes at 80°C, but in this case the line dryer was used for 2 minutes at 100°C. When the substrate was dried at this high temperature with a great deal of solvent on it, the substrate was affected adversely and turned white.

How can we dry in a line dryer without getting haze?

You may avoid the hazy effect with following countermeasures:

1. Lower the temperature of the line dryer. (lower than 80°C)

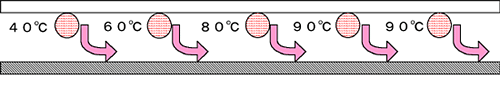

2. If the line dryer has several drying sections, set the temperature at the entrance section as low as 40-60°C and evaporate the solvent as much as possible (preferably 80-90%).

3. Then the printed matter can be dried at 80-100°C and evaporate the solvent completely. This should result in a good mirror effect.

Is over-printing required?

Yes. Over-printing is necessary not only to improve scratch resistance but also to improve resistance to other elements. As Mirror Ink is affected by moisture, the aluminum layer might change the color if not over-printed.

How can we increase covering power?

Use squeegee with 70 degree hardness and rather high printing pressure. When printing with Mirror Ink, the covering power may not be as good as what is shown in print samples. An effective measure to increase covering power is to use a harder squeegee. As the Mirror Ink has less resin in it, ink transfer to the substrate is rather lighter than with ordinary screen inks.

Therefore changing printing conditions is sometimes effective.

* Recommended printing conditions are as follows
Squeegee hardness should be 70 degrees. / Printing pressure should be slightly higher. / Doctor pressure should be slightly higher as well.

Screen printing, forming

Screen printing

What is screen printing?

Screen printing is a type of stencil printing which uses a technique of duplicating the image from a design made on mesh stencils.

When printing ink goes through the mesh, it transfers the image onto the substrate material. Other than air and water, any substrate materials are printable. Not only flat surfaces, but also curved, specially shaped, and molded products are suitable for screen printing.

When we extended the primary drying time, pinholes and cracks resulted. How can we eliminate them?

With one-pot inks, if the primary drying time is too long, the solvent of second ink penetrates the first color layer and makes pinholes.

With two-pot inks, if the primary drying time is too long, a curing process occurs. Thus when the second color is printed, the first color ink layer wrinkles and looks like cracks. The countermeasure in either case would be to shorten the primary drying time.

Why there is “Primary” drying and “Final” drying?

Residual solvent at the time of injection may cause ink flow and insufficient adhesion. To prevent these malfunctions, residual solvent must be evaporated through a “Final” drying process.

What are the standard drying conditions?

In multi-color printing, primary drying would be done after each color is printed. After the final color is printed, the final drying should be done according to the conditions listed in the catalog. If the color printed ink is a “two-pot” ink the final drying should be done after the printing of the Binder.

When over-printed with a black ink, we often have pinholes. How can we eliminate the pinholes?

See the list below for causes of pinholes:

1. The first layer is too thin (less than 5 µ)
2. Too much dilution of the ink (more than 20%)
3. Too much squeegee pressure
4. Under layer is pale colored, such as a medium based color
5. Any combination of these causes

Injection molding

We found that sometimes when we peel off the print from the injected resin, ink remains on one side or sometimes on both sides. Why does this occur?

In the case of ink remaining on the substrate, adhesion to the injected resin is poor. When ink remains on the injected resin, the adhesion to the substrate is poor. This is delamination. When ink remains on both sides, adhesion to substrate and injected resin are good, but the cohesion of the ink layer is poor. This is a cohesion failure.

The printed layer peeled away from the injected resin. What should we do?

This may be due to a mismatch of ink, substrate and the resin. Please contact our representative.

We have always had good adhesion, but suddenly peeling has occurred. What should we do?

Ink attached so far but it suddenly peeled off. I don’t know what to do.
Please check the following.
(1) Film thickness of printed ink layer
Thinner binder layer tends to have weaker adhesion.
(2) Drying conditions for printed ink layer
If ink doesn’t dry sufficiently, the strength of the printed ink layer becomes weak and cohesive fracture will occur.
(3) Are there any additives such as defoamer contained in ink or binder?
If additive such as defoamer is added in ink, ink’s adhesion to resin tends to be weak.

Film Insert Molding (FIM/IMD)

What is the meaning of FIM/IMD?

What types of forming are there?

Typically, there are Vacuum Molding, Air-pressurized Molding, Press Molding, and High Pressure Molding.

Using FIM/IMD method, can you give us some examples of substrate film and molding resin combinations?

PC, PET, and Acrylic substrate sheets are suitable. Suitable resins are PC, PMMA, PC/ABS, AS, etc. However, PP and Olefin are currently difficult to use because they do not have good adhesiveness to the substrate materials.

What is the difference between Film Insert Molding and In Mold Decoration? Do you use different inks for each?

For the FIM method, the printed surface will be placed between the substrate sheet and the resin. On the other hand, for IMD method, the printed surface will appear on top of the adhered layer of the substrate sheet and the resin. The type ink will depend on the application and your requirements.

What is the largest size that you can use for the Insert Molding Method?

Theoretically, it depends on the capability of molding machine. However, there is an elongation limit of the substrate sheet; it varies depending on the printing materials you are using.

Can you give some examples of the type of industry where a combination of ink and molding method is being used? What would be the actual finished product?

The main industries will be automobile interiors, amusements, and home appliances. Their finished products are such items as speedometers, pinball game machines, water boilers, TVs and possibly as cover material in various other areas.

Do you have any restrictions when you use functional inks for molding inks?

There are some limitations of color hue, glossiness, and other properties. Sometimes, Teikoku Inks is unable to meet a customer’s requirements due to the design of the product.

Binder, Catalyst

What is a binder?

It is a binding layer, which enhances the binding between the injected resin and the inserted print matter, principally printed with 2 pots of curing ink.

We recommend reading the following reports:
IMB-HF006 Binder (Halogen Free, Environmentally Friendly Binder for IMD/FIM)

Does ISX Ink need a binder?

No, it does not need a binder because ISX ink is a one-pot ink and has good adhesion to injected resin.

Why do two-pot inks need a Binder?

When cured, a two-pot ink layer has a cross-linked structure and good heat resistance, in other words it is hard to melt at the high temperature of the injected melt resin. Therefore it has inferior adhesion to injected resin. The binder layer between the pattern printed layer and injected resin can strengthen the adhesion between them.

At the time of printing Binder, excessive drying of under layer ink may cause decrease of peeling strength. Be sure to print continuously until Binder before final drying.

What is the best choice of catalyst and amount to be added?

In order to improve printing quality, it is necessary to use the most suitable catalyst according to the ink used, printing environment, and expected printed ink layer properties.

Please refer to the following technical report for information on the optimal catalyst and the amount to be added.

Related Link
Introduction of Catalyst

Printing on glass substrate

What are screen inks for glass substrate printing? And what are their characteristics?

For printing on glass substrate, GLS-HF ink series , a two component type Halogen Free ink for printing on glass substrates is recommended.

The GLS-HF ink series is characterized by the fact that it is an organic ink, unlike the inorganic inks conventionally used for glass substrate printing.

Therefore, GLS-HF ink has excellent functions to solve the problems of inorganic inks (burning type ink) such as “lack of color variation” and “environmentally hazardous substances”, etc.

Related link
Introduction of GLS-HF ink (1)

Is there any information related to the high value-added flat panel and touch panel?

We would like to introduce the high value-added glass substrates for flat panels, touch panels, etc. using the technologies we offer.

From a design stand point: *Realize various color variations on glass substrates. *High opacity Black and high opacity White that can be applied to window flame of touch panels.

From a function stand point: *Providing IR transmittance functions, *Malfunction prevention by non-conductive black, *Reduction of environmentally hazardous substances, etc.

Related links
Introduction of IRX-HF
Introduction of GLS-HF (4)
Introduction of GLS-HF (3)
Introduction of GLS-HF (2)
Introduction of Functional Black ink

Do you have any information related to reducing the cost of manufacturing flat panels and touch panels?

In the manufacturing process of flat panel displays, double-sided adhesive tapes are used to bond functional films and protective films that prevent panels from getting dirty or scratched. Replacing this double-sided tape with the UV adhesive that we offer could lead to a reduction in manufacturing costs. This is because bonding with this double-sided adhesive tape requires many processes, including “cutting the double-sided adhesive tape to fit the bonding surface,” “bonding the double-sided adhesive tape,” and “removing the release paper”. In addition, there is the problem of waste such as release paper and excess portions when matching the adhesive to the bonding surface. However, by using UV adhesive, it is possible to solve the problem of the number of processes and the problem of waste at the same time.”
